Standard Refrigeration Plants
Customers who need refrigeration systems up to 2.5 kW at 4.5 K appreciate the LR-Series as a safe, user-friendly system. Its reliability and high-quality equipment are particularly highlights.

Research applications, cooling of cavities or superconducting magnets require hundreds of watts of refrigeration capacity at liquid helium temperature.

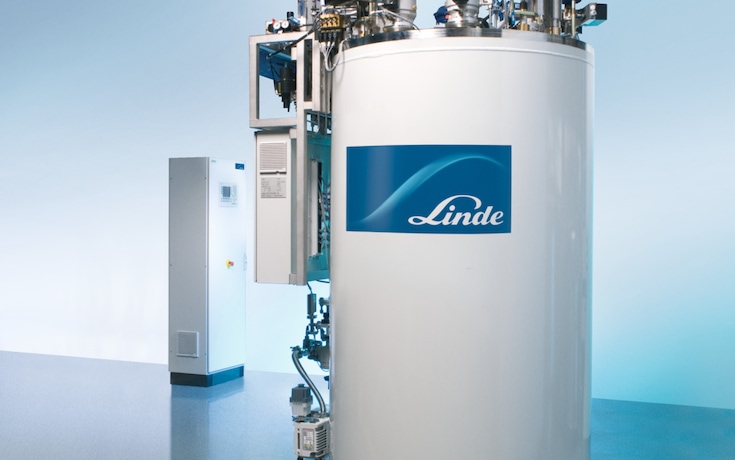

For these applications Linde Kryotechnik has developed refrigeration systems based on of the L-Series standard units with available refrigerating capacities from 100 W to 2,500 W at 4.5 K. The wide range of performance ratings is achieved by different compressors and precooling with or without liquid nitrogen. Refrigeration below 4.5 K requires cold ejectors or cold compressors to reduce the pressure in the experiments. Adsorbers are integrated into the cold box at 80 and 20 K to remove any residual contaminants from the helium. Like the standard liquefaction systems, the refrigeration equipment is fitted with a Siemens control and monitoring system. A PC system is offered for visualization; it can be enabled with on-line access for remote monitoring and support.

For applications with lower cooling requirements, the product range is supplemented by systems based on piston expanders.

Brochures Turbine Expanders

Helium Solutions

Datasheets Turbine Expanders

L70 / LR70
L140 / LR140
L280 / LR280

Datasheets Piston Expanders

L1410 / LR1430
L1610 / LR1630
